Car Stacker Parking Systems
Provide two parking levels in the space of one.
Our Stacker Parking Systems provide two more more parking levels in the space of one. They come as dependent or independent systems, depending on whether they are constructed in above ground or in a pit.
Smart Lifting Mechanism
On select models, thanks to a hydraulic double-stage cylinder our stackers have a very fast lifting speed. When the platform moves down it is powered by gravity, so there is no electricity consumption for the hydraulic power pack. Even in case there is a complete power failure, the upper car can still be retrieved manually with the operation of a solenoid valve.
Dependant / Independant
Dependent and independent systems provide users with the ability to retrieve the elevated vehicle without replying on the lower vehicle to be moved.
Independent systems require a pit, while dependent systems are simpler, eliminating the 2nd moving platform underneath.
Surface or Pit Mounted

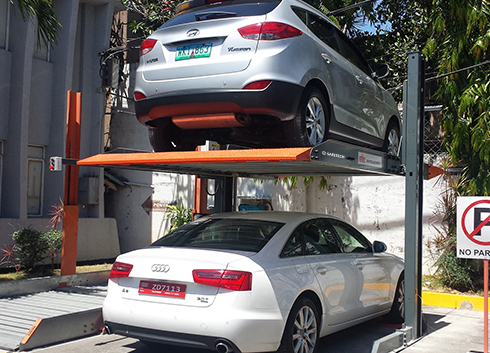

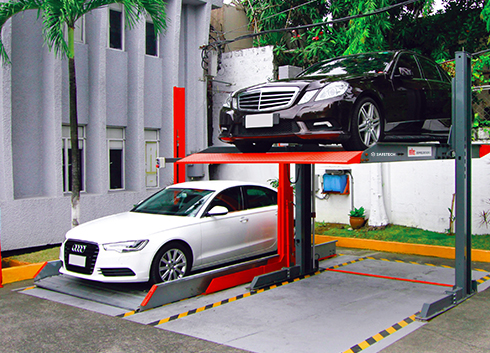

Surface-mounted stackers are the primary solution for existing sites or suspended slab basements and parking facilities. They are a great way to double your parking capacity.
If planned into the building, pit mounting solutions offer independent parking and trafficable roof options.
Trafficable Roof
Expand your single-car garage by adding 1 or 2 more hidden spaces below the surface.
Or hide your precious vehicle beneath your courtyard or desk maximising the usable space in your home with our Trafficable Roof vehicle stacker range.
Pit Mounted Models
All stacker arrangements can be configured to suit B99 & B85 requirements.
| SPECIFICATIONS | ||||
|---|---|---|---|---|
| Model | ST-2127 (Single Wide) | ST-2227 (Double Wide) | ||
| Accommodation | LxWxH | 5000 x 2150 x 1850/1650 mm | LxWxH | 5000 x 2150 x 1850/1650 mm |
| WEIGHT | 2700 kg | WEIGHT | 2700 kg | |
| PUMP MOTOR | 5.5 KW | |||
| LIFTING SEED | 60 - 120 SEC | |||
| POWER SOURCE | 415V x 50HZ x 3P | |||
Surface Mounted Models
All stacker arrangements can be configured to suit B99 & B85 requirements.
| SPECIFICATIONS | ||||
|---|---|---|---|---|
| Model | ST-1127 | |||
| Accommodation | L x W | 5000 x 2150 mm | ||
| HEIGHT | UPPER | 2000 mm | ||
| LOWER | 2000 mm | |||
| WEIGHT | 2700 kg | |||
| PUMP MOTOR | 2.2 KW | |||
| LIFTING SEED | 30 - 45 SEC | |||
| POWER SOURCE | 240V x 50HZ x 1P | |||
