Paldisc & Palring Turntables
Palletising and workstation turntables
Turntables are a simple path to safer manual handling and eliminate the need for stretching when loading or unloading products. Ideal for areas where more complex lifting equipment can’t be used turntables are inexpensive and durable. Goods are simply placed on the turntable and then manually rotated to avoid stretching across the load.
Safetech Turntables are also available mounted to stands (300 & 500mm) and are regularly fixed to scissor lifts for workstation and pallet loading applications.
When choosing a turntable consider the following:
- Ease of turning - Can the turntable rotate easily by hand?
- Robust design - Will the turntable withstand prolonged industrial use?
- Ease of relocation
- Capacity - Consider the loads that the turntable may need to bear.
- Ease of loading - Is a forklift available to load the turntable or do you need a low profile turntable (Paldisc) for hand pallet truck access?
- Warranty - All Safetech turntables carry a 12-month warranty.
Applications
- Bulky goods loading
- Drum loading applications
- Manual palletising / depalletising
- Loading / unloading stillages, bins.

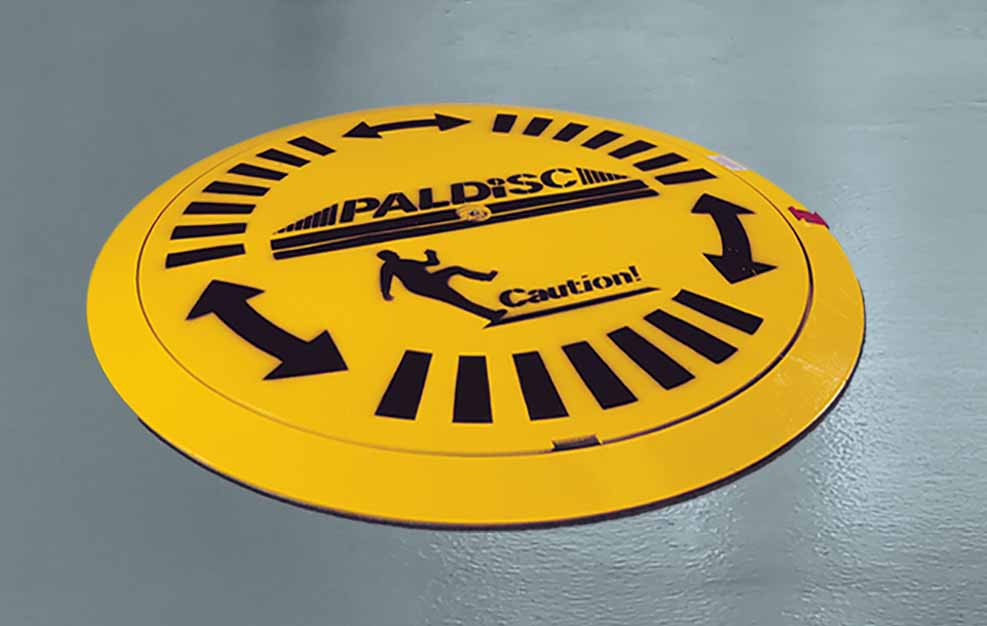

Paldisc
The Paldisc is unique to Safetech and provides rotation of up to 2000kg and an ultra-low turntable height of only 24 mm – ideal for use with hand pallet trucks.
- Easy to load using a hand pallet truck. At only 24mm high the Paldisc is the lowest turntable on the market.
- Easy to rotate, even with a 2-tonne load.
- The compact size of the turntable makes it ideal where space is limited.
| Dimension | No. |
|---|---|
| Turntable Height: | 24 mm |
| Turntable Diameter: | 1100 mm |
| Overall Diameter: | 1240 mm |
| Total Weight: | 100 kg |
| Maximum Capacity: | 2 tonnes |

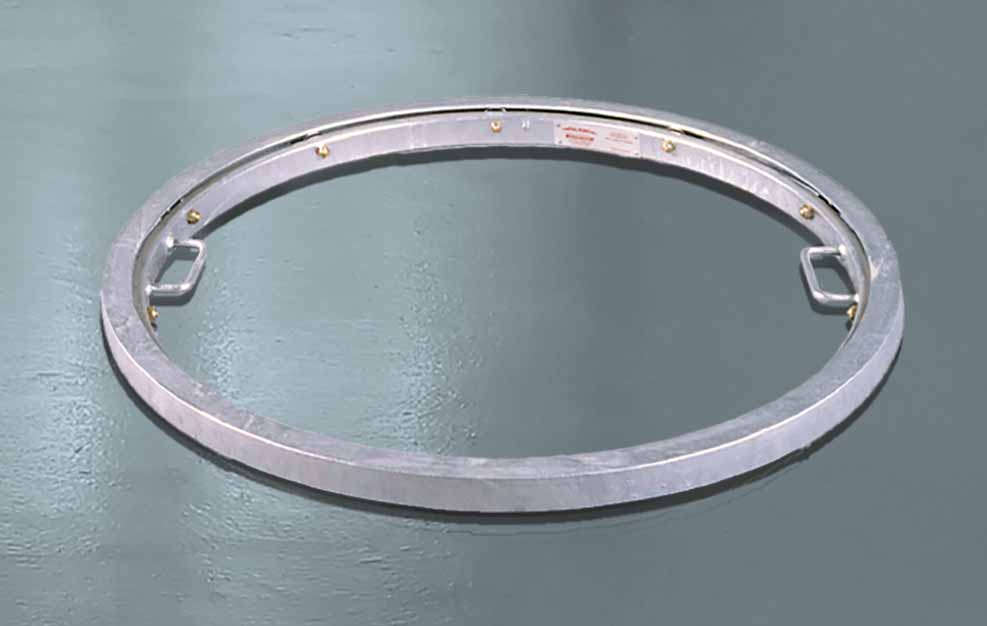

Palring
The Palring is an affordable, robust, easy to use turntable – ideal for use alongside conveyor, feeding hoppers, extruders, process and production equipment.
- Two models of Pallet Turntables available
- 1100mm diameter
- 900mm diameter
- Lowest profile turntable available allows pallet loading using a hand pallet truck
- Palring Galvanised turntable is lightweight and robust with 2000kg capacity
- Turntables on stands for ergonomic loading
- Regularly included in scissor lift specifications
| Dimension | No. |
|---|---|
| Ring Height: | 60 mm |
| Ring Diameter: | 1100 mm |
| Total Weight: | 26 kg |
| No. of Bearings: | 10 |
| Maximum Capacity: | 2 tonnes |
